PLCC Programming Adapters
PLCC Emulator Adapters - PLCC Prototyping Adapters
Call Logical Systems at (315) 478-0722
|
The following charts show only PLCC to DIP adapters wired 1:1 or for common memory and logic devices. Many more are available. If you need a different wiring or are not sure use the device part number search above or look under Adapters in the menu above. Click on the blue part numbers below for photos and data sheets or to purchase our PLCC adapters.

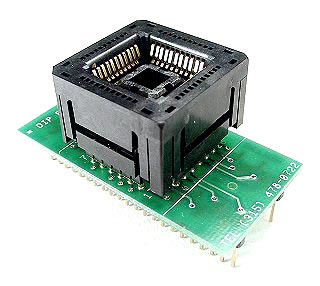

PLCC Programming Adapters - PLCC test socket on top and a DIP plug. Test sockets are open-top or lidded.
PLCC Emulator Adapters - DIP receptacle on top and a PLCC plug on the bottom. DIP receptacles have machined pins or DIP ZIF sockets.
PLCC Prototyping Adapters - PLCC test socket on top and a PLCC plug on the bottom. PLCC test sockets are open-top or lidded.
|
|

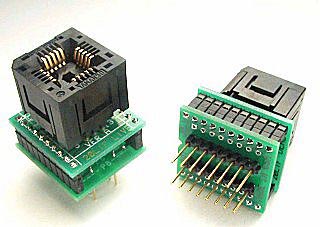

| PLCC Programming Adapters for 20 pin Memory and Logic Devices |
 |
| |
Part Numbers to Order |
Wiring |
Auto-eject Socket
300 mil DIP Plug |

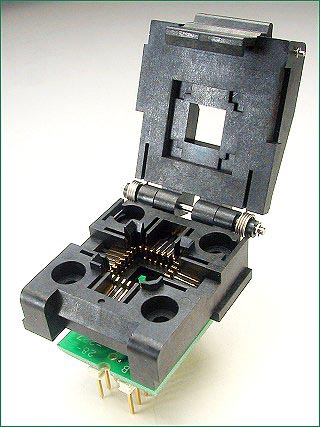

Lidded Socket
300 mil DIP Plug |
Auto-eject Socket
600 mil DIP Plug |
Lidded Socket
600 mil DIP Plug |
1:1 |
|
|
|
|
1,6,11,16
skipped |
PA20-16-1PD3 |
PA20-16-1PZ3 |
PA20-16-1PD6 |
|
|
PLCC Programming Adapters, PLCC Emulator Adapters & PLCC Prototyping Adapters for 28 pin Devices |
 |
| |
Part Numbers to Order |
Pins |
Wiring |
Programming
Adapters |
Emulator
Adapters |
Prototyping
Adapters |
28 |
1:1 |
PA28-28
PA28-28Z |
PA28-28-DP
PA28-28-DP-PP |
PA28-PP
PA28-PZP |
28 |
5, 8, 11, 19 skipped |
PA28-24-1P3
PA28-24-1PZ3
PA28-24-1P6
PA28-24-1PZ6 |
PA24-28-1DP
PA24-28-1DP-PP |
PA28-PP
PA28-PZP |
28 |
1, 8, 15, 22 skipped |
PA28-24-2P3
PA28-24-2PZ3
PA28-24-2P6
PA28-24-2PZ6 |
PA24-28-2DP
PA24-28-2DP-PP |
PA28-PP
PA28-PZP |
28 |
5, 10, 21, 22 skipped |
PA28-24-3P3
PA28-24-3PZ3
PA28-24-3P6
PA28-24-3PZ6 |
PA24-28-3DP
PA24-28-3DP-PP |
PA28-PP
PA28-PZP |
28 |
1, 10, 15, 21 skipped |
PA28-24-5P3
PA28-24-5PZ3
PA28-24-5P6
PA28-24-5PZ6 |
PA24-28-5DP
PA24-28-5DP-PP |
PA28-PP
PA28-PZP |
28 |
1, 11, 15, 19 skipped
(28-1)(14-15) skipped |
PA28-24-7P3
PA28-24-7PZ3
PA28-24-7P6
PA28-24-7PZ6 |
PA24-28-7DP
PA24-28-7DP-PP |
PA28-PP
PA28-PZP |
|
PLCC Programming Adapters, PLCC Emulator Adapters & PLCC Prototyping Adapters for 32 pin Devices |
 |
| |
Part Numbers to Order |
Pins |
Wiring |
Programming
Adapters |
Emulator
Adapters |
Prototyping
Adapters |
32 |
1:1 |
PA32-32
PA32-32Z |
PA32-32-DP
PA32-32-DP-PP |
PA32-PP
PA32-PZP |
32 |
1, 12, 17, 26 skipped.

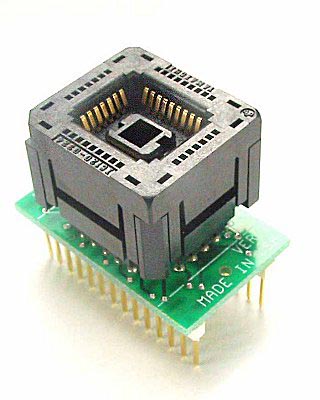

2765-27512 EPROMS |
PA32-28
PA32-28Z |
PA28-32-DP
PA28-32-DP-PP |
PA32-PP
PA32-PZP |
32 |
1, 2, 3, 12, 17, 27,
30, 31 skipped |
PA32-24-1P3
PA32-24-1PZ3
PA32-24-1P6
PA32-24-1PZ6 |
n/a |
PA32-PP
PA32-PZP |
32 |
1, 2, 3, 12, 17, 26,
27, 30 skipped |
PA32-24-2P3
PA32-24-2PZ3
PA32-24-2P6
PA32-24-2PZ6 |
n/a |
PA32-PP
PA32-PZP |
|
PLCC Programming Adapters, PLCC Emulator Adapters & PLCC Prototyping Adapters for 44 pin devices |
 |
|
|
|
|
|
