SMT to Thru-hole Adapters - Surface Mount Adapter Kits

Call (315) 478-0722
Replace DIP devices with SMT. These adapters provide a SMT land pattern on the top and a DIP plug on the bottom.
Prices given are for quantities of 1-10 pieces. For larger quantity pricing please call or email. We also offer SMT mounting services.
8 pin SMT IC adapters are RoHS compliant. Other RoHS compliant parts available upon request.


SMT to Thru-hole Adapters for SOIC to DIP

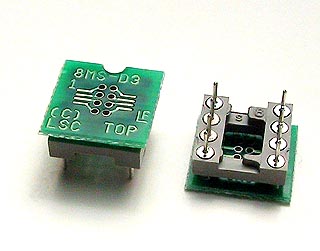

SMT to Thru-hole Adapter for SOIC, 8 pin shown

Part numbers to order
Pins
SOIC Body Width
Wiring
SMT adapter with 300
mil span DIP plug
SMT adapter with 600
mil span DIP plug
8
150 - 300 mil
1:1
PA-SOD3SM18-08 n/a
14
150 - 300 mil
1:1
PA-SOD3SM18-14 n/a
16
150 - 300 mil
1:1
PA-SOD3SM18-16 n/a
18
200 - 300 mil
1:1
PA-SOD3SM18-18 n/a
20
200 - 300 mil
1:1
PA-SOD3SM18-20 n/a
24
300 - 350 mil
1:1
PA-SOD3SM18-24 PA-SOD6SM18-24
28
300 - 350 mil
1:1
PA-SOD3SM18-28 PA-SOD6SM18-28
32
450 mil
1:1
n/a PA-SOD6SM18-32
40
450 mil
1:1
n/a PA-SOD6SM18-40
44
520 mil
1:1
n/a PA-SOD6SM18-44
SMT to Thru-hole Adapters for SSOP - TSSOP to DIP (work for both SSOP & TSSOP)

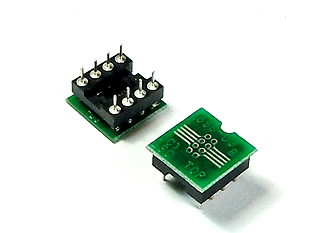

SMT to Thru-hole Adapter for SSOP - TSOOP

Part numbers to order
Pins
Wiring
SMT adapter with 300
mil span DIP plug
SMT adapter with 600
mil span DIP plug
8
1:1
PA-SSD3SM18-08 n/a
14
1:1
PA-SSD3SM18-14 n/a
16
1:1
PA-SSD3SM18-16 n/a
18
1:1
PA-SSD3SM18-18 n/a
20
1:1
PA-SSD3SM18-20 n/a
24
1:1
PA-SSD3SM18-24 PA-SSD6SM18-24
28
1:1
PA-SSD3SM18-28 PA-SSD6SM18-28
32
1:1
n/a PA-SSD6SM18-32
40
1:1
n/a PA-SSD6SM18-40
44
1:1
n/a PA-SSD6SM18-44
SMT to Thru-hole Adapters for MSOP to DIP
Surface Mount to Thru-hole Adapter for MSOP

Part numbers to order
Pins
Wiring
SMT adapter with 300 mil span DIP plug
8
1:1
PA-MSD3SM18-08
10
1:1
PA-MSD3SM18-10
SMT to Thru-hole Adapter for PLCC to DIP (for 8051 family only)
Surface Mount to Thru-hole Adapter for 8051

Part numbers to order
Target IC
Land Pattern Pins
Plug Pins
SMT adapter with 600 mil
span DIP plug
8051 family
44
40
 PA-PLL51-44
SMT to Thru-hole Adapter for QFN to DIP
Surface Mount to Thru-hole Adapter for QFN

Part numbers to order
Pins
Wiring
SMT adapter with 600 mil span DIP plug
32
1:1 by signal (classic)
 PA-QLD6SM18-32F-88
SMT to Thru-hole Adapters for QFP to DIP

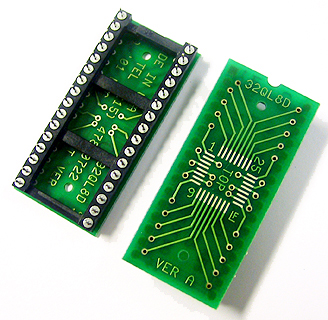

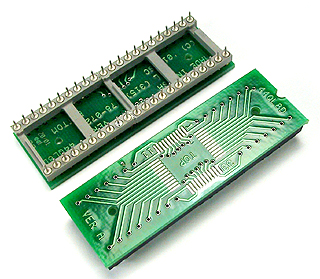

Surface Mount to Thru-hole Adapter for QFP

Part numbers to order
Pins
Wiring
SMT adapter with 600 mil span DIP plug
32
1:1 by signal (classic)
 PA-QLD6SM18-32F-88
44
1:1 by signal (classic)
 PA44QL8-D
44
1:1 by pin
 PA44QL8-1D
SMT to Thru-hole Adapters for QSOP to DIP
Surface Mount to Thru-hole Adapter for QSOP

Part numbers to order
pins
Wiring
SMT adapter with 600 mil span DIP plug
16
1:1
PA-QSD3SM18-16
20
1:1
PA-QSD3SM18-20
24
1:1
PA-QSD3SM18-24
SMT to Thru-hole Adapters for SOT to DIP

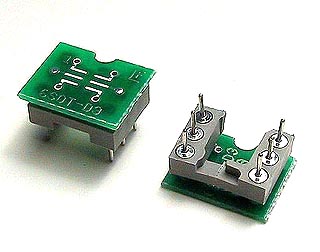

Surface Mount to Thru-hole Adapter for SOT

Part numbers to order
Pins
Wiring
SMT adapter with 300 mil span DIP plug
6
1:1
PA-SOTD3SM18-06
SMT to Thru-hole Adapters for TSOP to DIP (will work for any width device)
SMT to Thru-hole Adapter for TSOP

Part numbers to order
Pins
Wiring
SMT adapter with 600 mil span DIP plug
32
1:1
PA-TSD6SM18-32
40
1:1
PA-TSD6SM18-40
48
1:1
PA-TSD6SM18-48
